Arch Rubber Fender Overview

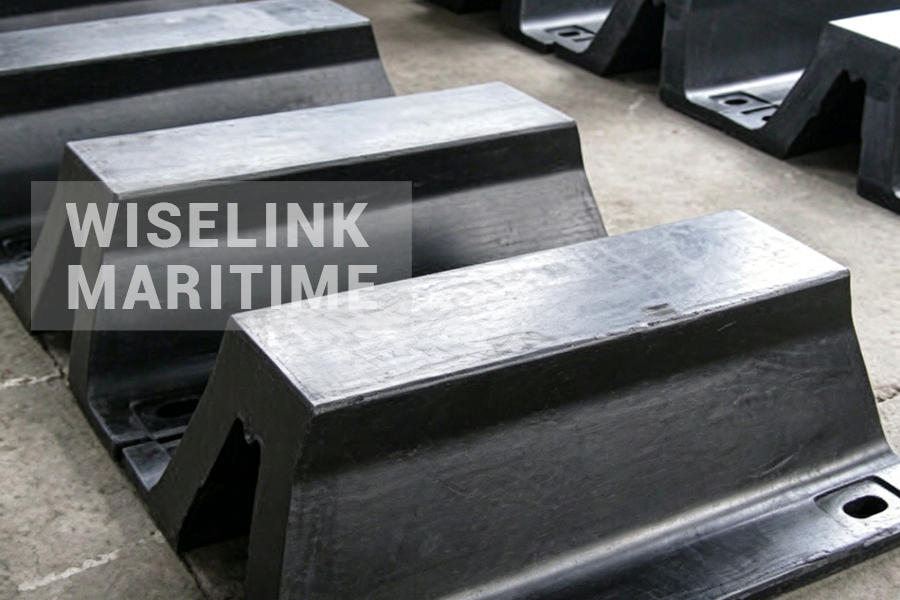

The Arch Rubber Fender (also known as the V-type fender) is a classic, high-performance docking solution designed to provide maximum durability and energy absorption for a wide range of maritime applications. It is characterized by its "arch" or "V" shape, which provides a large mounting base and a rugged contact face.

At WISELINK Maritime, our Arch Rubber Fenders provide the rugged, reliable shield your port infrastructure deserves.

Key Specifications

Design Profile: The arch shape allows for excellent stress distribution throughout the fender body during compression.

Dimensions: Available in heights from 150 mm to 1000 mm and lengths ranging from1000 mm to 3500 mm.

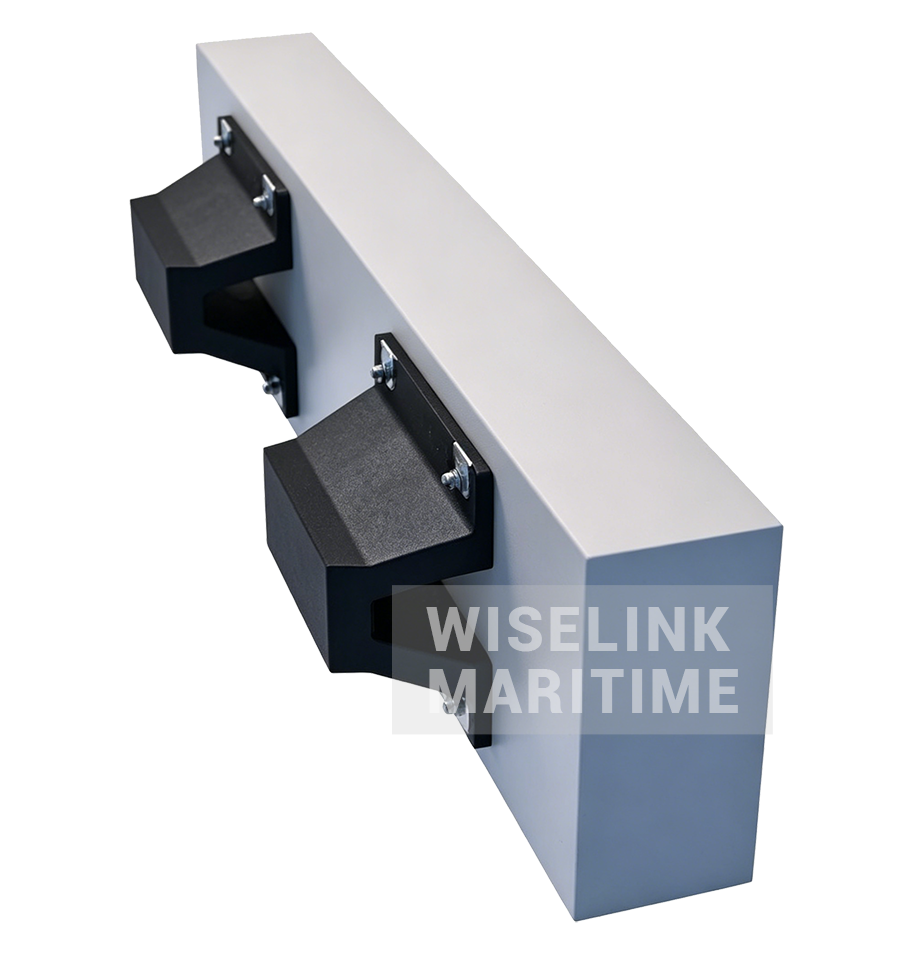

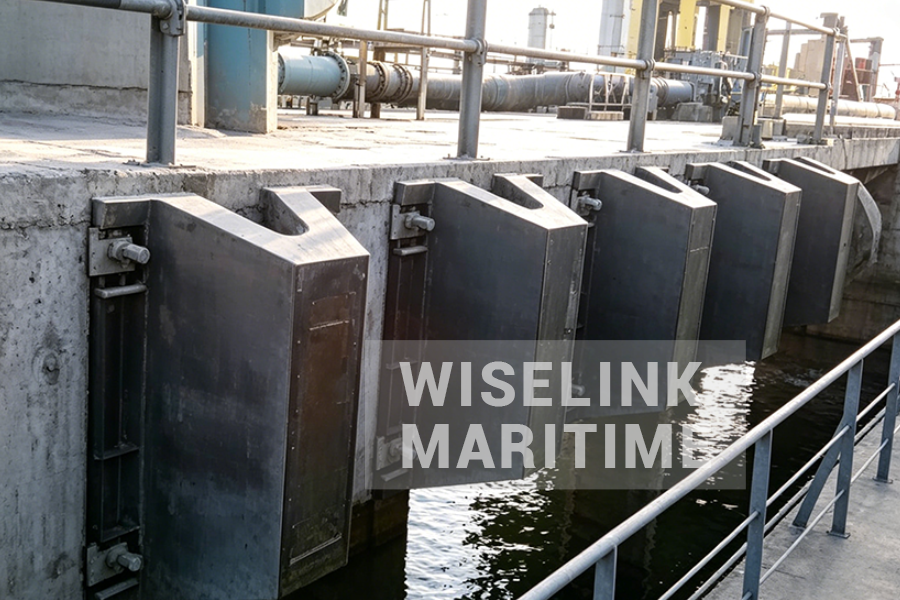

Mounting:Features a wide, steel-reinforced base with pre-drilled holes for secure bolting to the quay wall.

Optional Face Pads:Can be equipped with UHMW-PE (Ultra-High Molecular Weight Polyethylene) low-friction pads to reduce shear force and prevent wear on the vessel's hull.

Products Details

Superior Durability

Excellent Shear Resistance

Space-Efficient Design

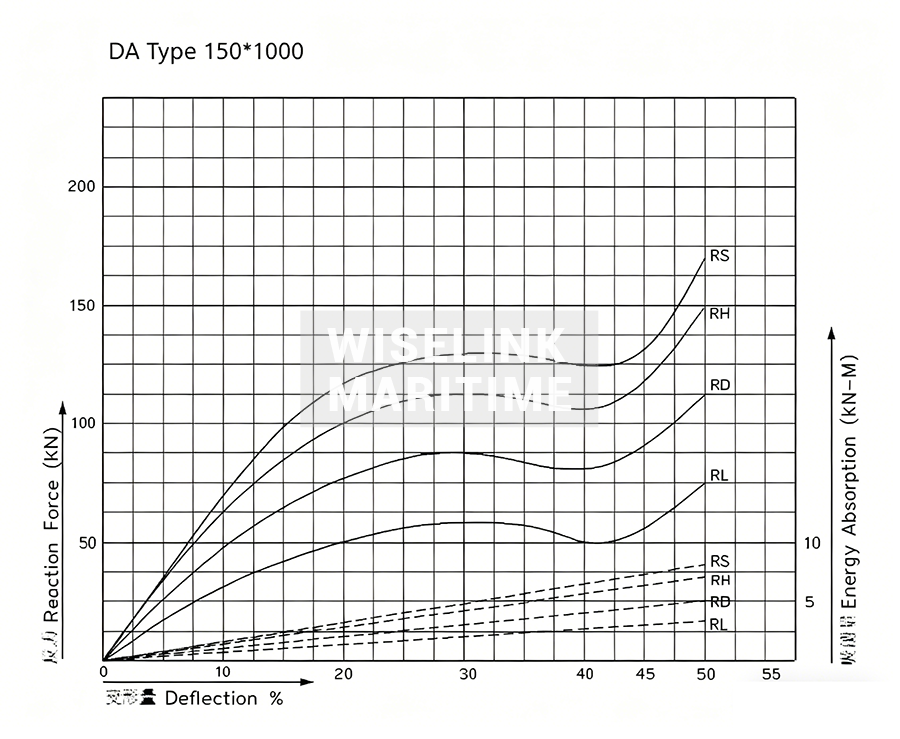

High Energy Absorption with Low Reaction Force

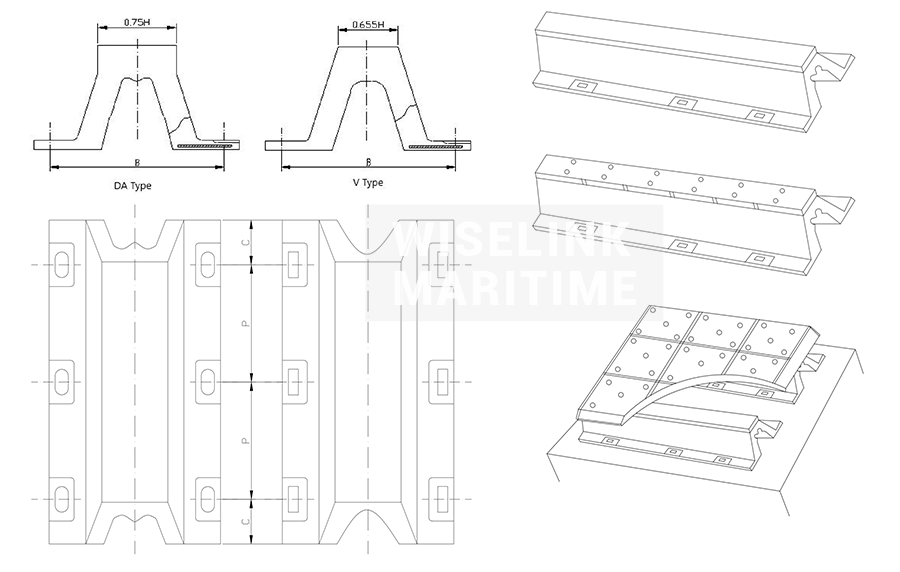

图片说明

Model

Height

(mm)

Width

(mm)

Base

(mm)

Recess

(mm)

Bolt Hole

(mm)

Weight

(kg/pc )

WL200H

200

400

320

130

128

64

WL250H

250

500

410

164

160

86

WL300H

300

600

490

225

195

129

WL400H

400

800

670

300

260

210

WL500H

500

1000

840

375

325

328

WL600H

600

1200

1010

450

390

486

WL800H

800

1600

1340

600

520

883

WL1000H

1000

2000

1680

750

650

1411

WL1200H

1200

2400

2020

900

780

2032

WL1500H

1500

3000

2520

1125

975

3175

Application Areas

Arch rubber fenders are versatile, solid rubber fenders used across a wide range of marine facilities. Their V-shaped cross-section provides high energy absorption with low reaction force, making them suitable for:

 General cargo berths – Mixed vessel traffic, breakbulk terminals

 Bulk cargo terminals – Coal, iron ore, grain, cement berths

 Container terminals – Low hull pressure protection for large vessels

 Shipyards & dry docks – Vessel construction, repair, and launch berths

 Fishing harbors – Abrasion-resistant protection for varied vessel types

 Marinas & small craft harbors – Smaller sizes for yachts and pleasure craft

 Locks & canals – Guide wall protection during lock transit

 Offshore support berths – Durable fendering for supply and crew vessels

Certification
