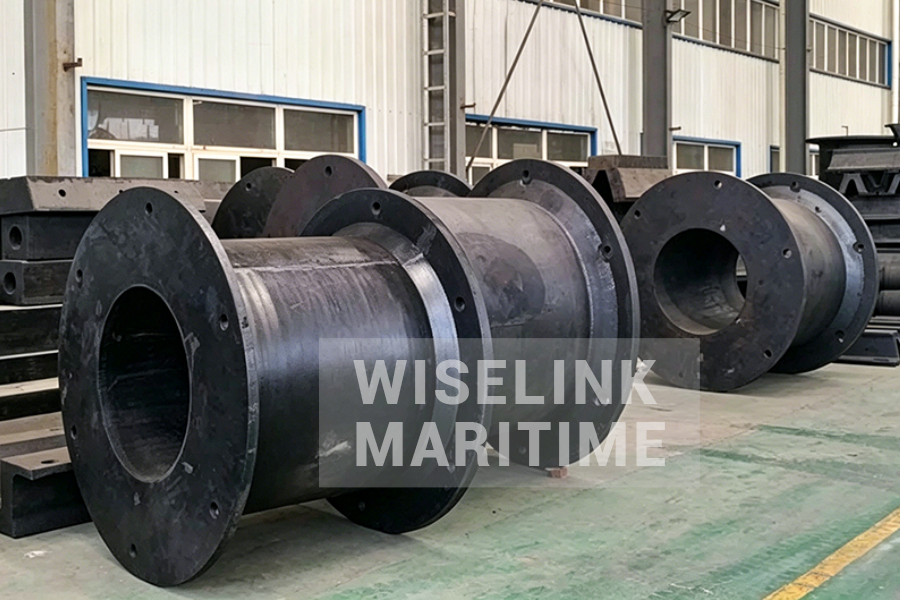

Cell Rubber Fenders Overview
The Super Cell Fender is a "compression-molded" rubber unit that features a cylindrical body with an integrated wide flange. Its geometric design allows for superior stress distribution during heavy impact, making it the preferred choice for berths handling the world’s largest cargo and energy vessels.
Key Specifications
Sizes: Ranging from 400H to 3000H (Height).

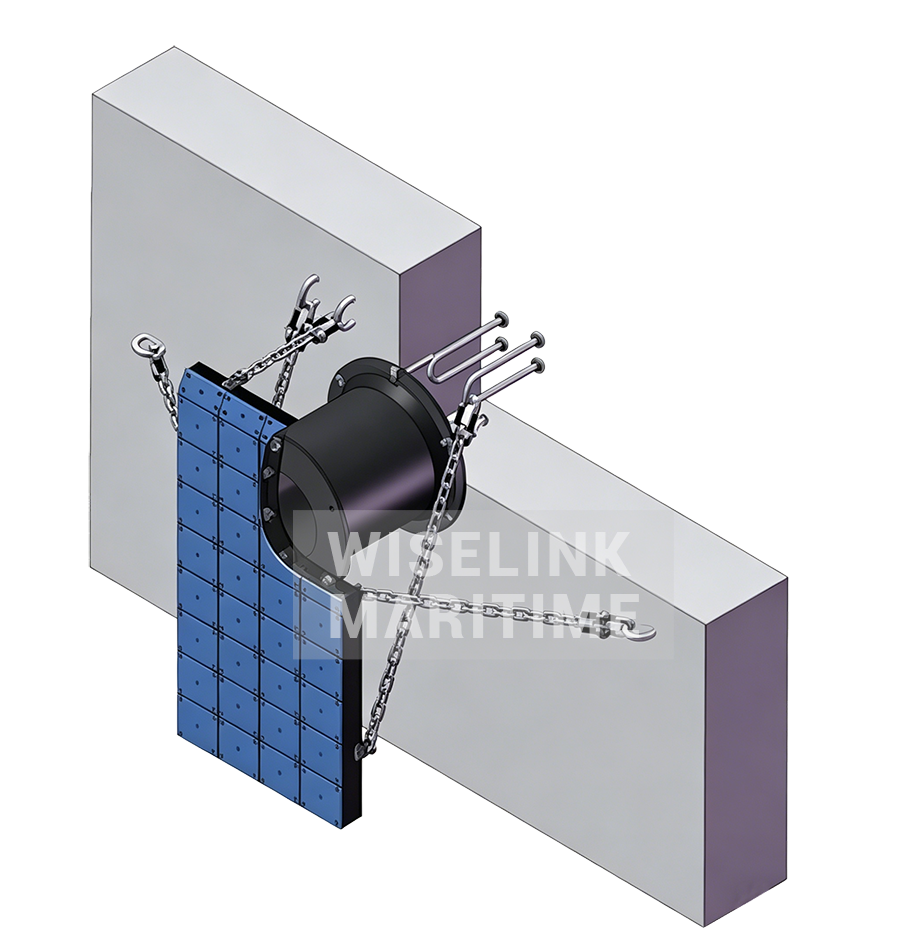

Structure: Comprises the rubber cell, a heavy-duty frontal steel panel, and low-friction UHMW-PE pads.
Material: High-grade marine rubber compound designed to withstand extreme shear and compressive forces.
Products Details
High energy absorption capacity
Excellent compression resilience
Wear-resistant and anti-aging
Easy installation and low maintenance cost
Lightweight yet durable
|
Model |
Height (mm) |
h (mm) |
D1 (mm) |
D2 (mm) |
n-Ød (mm) |
Weight (kg) |
|
WLSC400H |
400 |
25 |
550 |
650 |
4-30 |
78 |
|
WLSC500H |
500 |
25 |
550 |
650 |
4-32 |
110 |
|
WLSC630H |
630 |
30 |
700 |
840 |
4-39 |
230 |
|
WLSC800H |
800 |
30 |
900 |
1050 |
6-40 |
410 |
|
WLSC1000H |
1000 |
35 |
1100 |
1300 |
6-47 |
790 |
|
WLSC1150H |
1150 |
40 |
1300 |
1500 |
6-50 |
1200 |
|
WLSC1250H |
1250 |
45 |
1450 |
1650 |
6-53 |
1500 |
|
WLSC1450H |
1450 |
47 |
1650 |
1850 |
6-61 |
2300 |
|
WLSC1600H |
1600 |
50 |
1800 |
2000 |
8-61 |
3000 |
|
WLSC1700H |
1700 |
55 |
1900 |
2100 |
8-66 |
3600 |
|
WLSC2000H |
2000 |
55 |
2000 |
2200 |
8-74 |
5200 |
|
WLSC2250H |
2250 |
60 |
2300 |
2550 |
10-74 |
7400 |
|
WLSC2500H |
2500 |
70 |
2700 |
2950 |
10-74 |
10500 |
|
WLSC3000H |
3000 |
75 |
3150 |
3350 |
12-90 |
18500 |

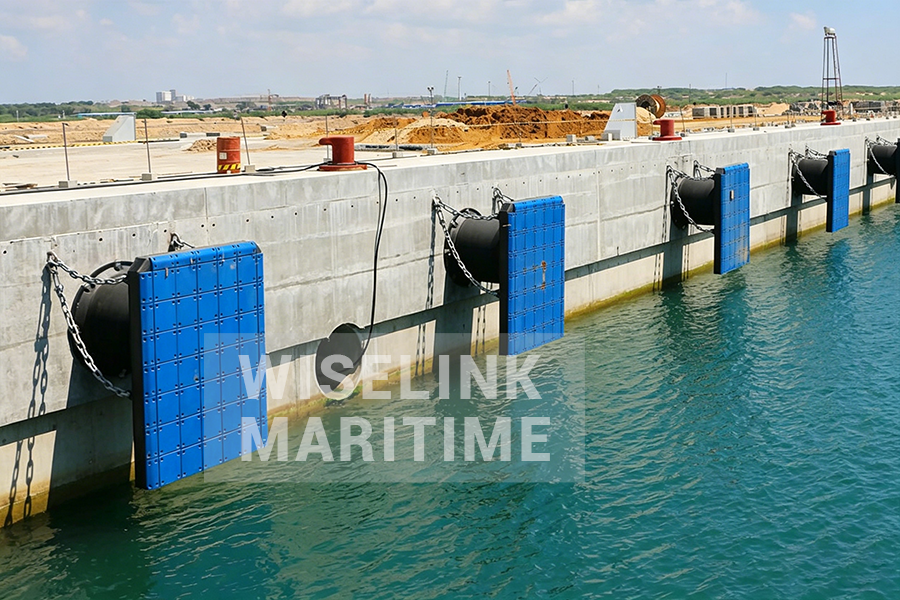

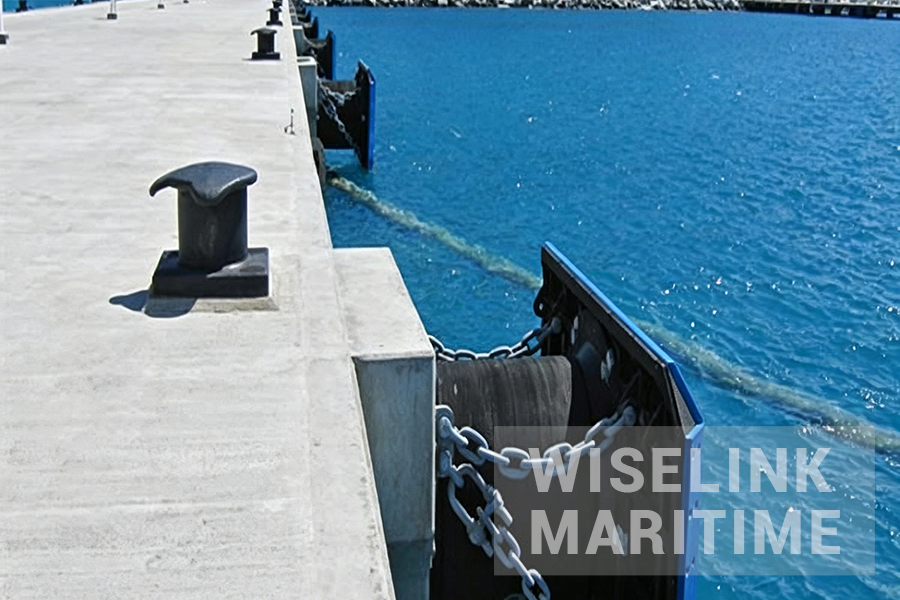

Application Areas
Container terminals – Protecting large container ships (Feeder to ULCS) during frequent berthing
Oil, gas & LNG terminals – Safe berthing for VLCC, ULCC, and LNG carriers with sensitive hull coatings
Bulk cargo terminals – Handling high-energy impacts from Capesize bulk carriers (coal, iron ore, grain)
General cargo berths – Versatile protection for mixed vessel traffic
Cruise terminals – Low reaction force for passenger comfort and hull protection
Naval bases – Reliable protection for frigates, destroyers, and aircraft carriers
Shipyards & dry docks – Suitable for vessels under construction or repair
